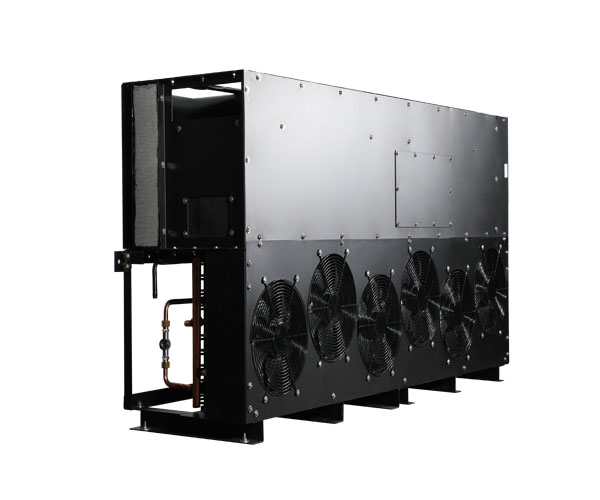

GZHD Bus AC

Built-in, Compact

GZHD is rear mounted bus ac for 8 to 14m double decker bus, with cooling capacity from 24000 to 48000 kcal/h.

  • City Bus

  • Intercity Bus

  • Coach

Technical Data Sheet

Model GZHD-04 GZHD-06 GZHD-08
Cooling Capacity(kcal/h) 24000 32000 48000
Max Power Consumption (A) 63 65 85
Evaporator Airflow(m³/h) 4000(4pcs) 7000(6pcs) 12000(8pcs)
Condenser Airflow(m³/h) 6000(3pcs) 8000(4pcs) 10000(5pcs)
Compressor Displacement(CC) 420 650 830
Refrigerant R134a R134a R134a
Size(mm) LxWxH 2000*580*340 2240*670*480 2000*750*1230
Application (m) 8-9 10-12 12-14

Features

  • Customized design

    Customized design upon customer request for GZHD-06.

  • Efficient

    GZHD-08 can realize zone temperature control, 5% cost saved.

  • Powerful cooling

    Through big margin deisgn, heating transfer surface increased 30%, heating efficiency improved 10%, cooling capacity increased 10%.

  • Water Test

    Water test for products.

  • Salt Spray Test

    To provide best performance for application near the sea.

  • Vibration Test

    To ensure reliability when bus running.

Installation

    • Preparation

      First clean the rooftop surface, then put glue to install the sponge and rubber pad, later put glue with a glue gun around the sponge.

    • Evaporator and Condensor Installation

      Lift the condensor and evaporator to the top of the bus, install and connect the pipes and wiring harness, then fix the condesor and evaporator to the bus rooftop, put glue for sealants where needed.

    • Cover Installation

      Move the cover to the top of condensor and evaporator, check the position and drop the cover, fix screws and check the gap to follow requrements.

References

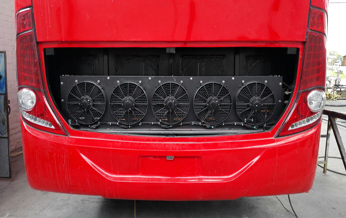

    • GZHD Bus Air Conditioner in South America

    • GZHD Bus Air Conditioner in South America

    • GZHD Bus Air Conditioner in Africa
