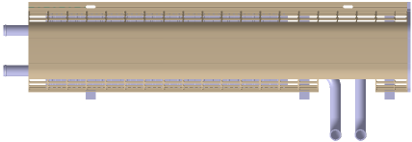

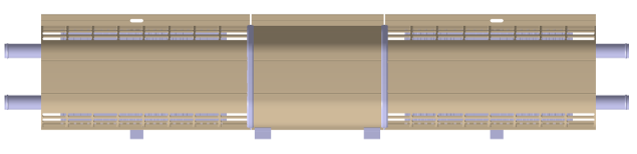

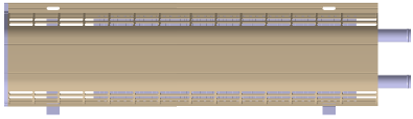

1. Cling Natural Radiator
Product Features
High heat dissipation efficiency: The heat dissipation per unit length of the product is 700w/m, which is twice that of the same specification products of other domestic manufacturers;
Beautiful appearance: Beautiful appearance and easy to install. It has no exposed nails and considerate design of wire troughs, which is suitable for different installation scenarios;
Quiet and comfortable: Natural water heating and heat dissipation, the customer experience is quiet and more comfortable;
Combination design: The product can be combined in different lengths to meet the needs of different models of customers;
Light weight: Using high-efficiency heat transfer tubes combined with simulation analysis reduces the product volume by 10% and the weight by 20%.
Specification
| Model | KLSZ |
| Heating | 700W/m |
| Weight | 2.6kg/m |
| Length | 0.5~5m |
| Dimension (mm) | L*184*99.5 |
| Application | High-end fuel bus |
Display

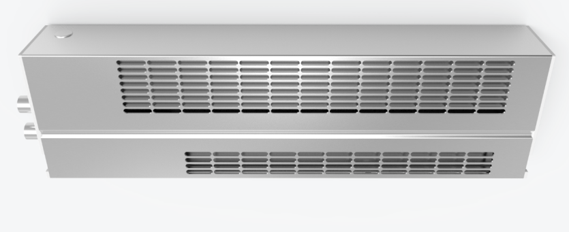

Product Features
Intelligent and comfortable: The fan adopts multi-speed adjustment to achieve constant temperature control while meeting the rapid heating, reducing the start and stop of the radiator and improving the comfort of the ride;
Beautiful appearance: The product has beautiful appearance and is easy to install. It has no exposed nails and a variety of lengths, which are suitable for different installation scenarios;
Reliable and durable: It adopts long-life fans and aluminum profile shells, and the product service life is more than 8 years;
Mode air supply: After simulation analysis of multiple flow fields, a variety of radiator categories are designed to meet personalized needs according to the usage habits of different customers at home and abroad.
Specification
| Model | KLSQ-04A | KLSQ-02A | KLSQ-04B | KLSQ-02B | |
| Heating（kW） | 4 | 2 | 4 | 2 | |
| Air Flow (m³/h) | 400 | 200 | 400 | 200 | |
| Blower Power Consumption (W) | ≤40 | ≤20 | ≤40 | ≤20 | |
| Blower (lifespan) | Brush cross flow fan 4000h | Brushless axil flow fan 20000h | |||
| Speed Mode | Three shifts | PWM Continuously variable speed | |||
| Dimension (mm) | 645*99.5*190 | 400*99.5*190 | 800*164*99.5 | 500*164*99.5 | |
| Weight (kg） | 3.5 | 2.3 | 3.8 | 2.4 | |
| Protection Grade | IP54 as a whole part, EMC-3 | ||||
| Application | fuel bus/electric bus | overseas fuel bus | |||
Display

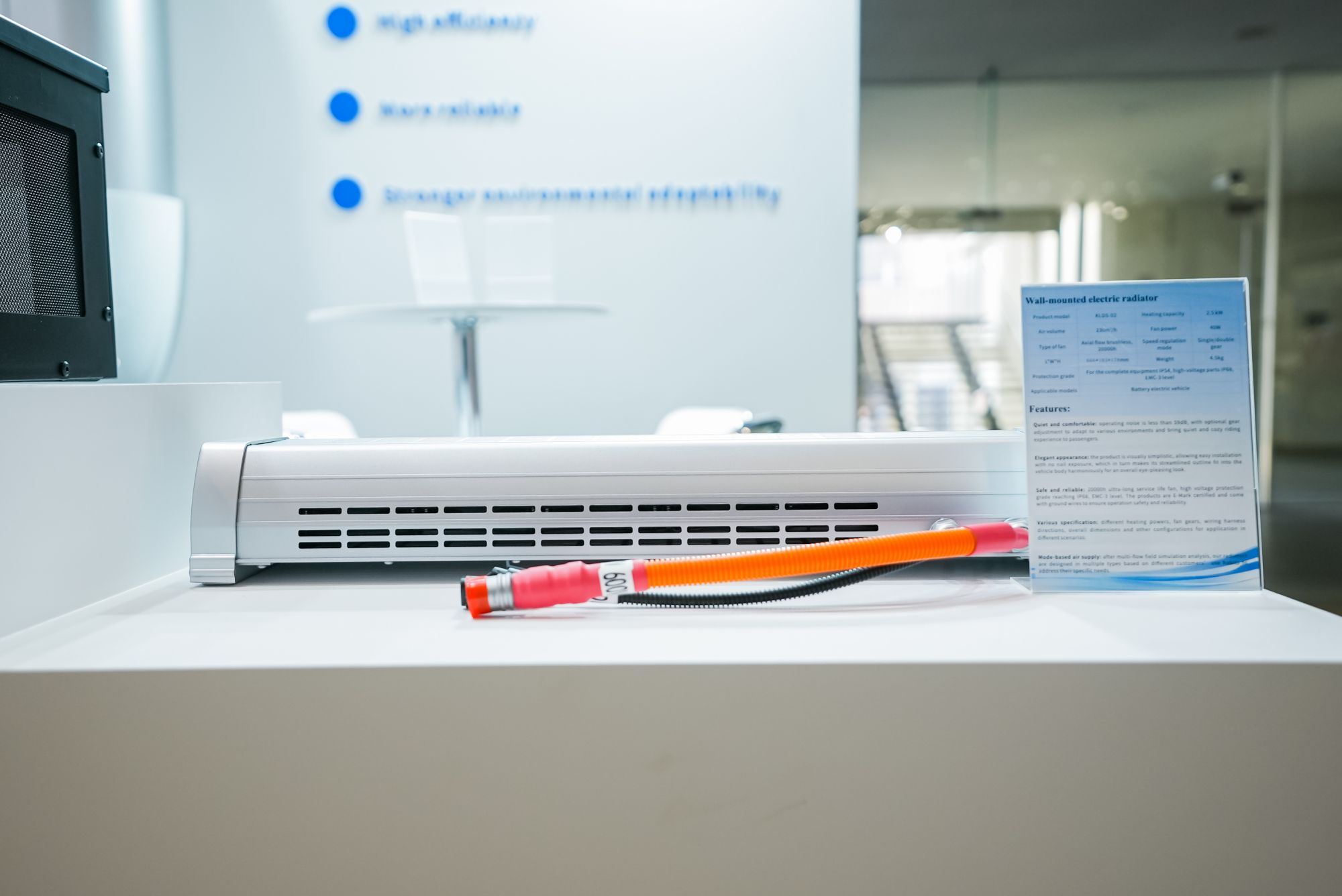

Product Features
Quiet and comfortable: The noise is less than 59 decibels, and the gear adjustment is optional to adapt to various environments, bringing passengers a quiet and comfortable riding experience;
Beautiful shape: The product has beautiful and generous shape, easy installation, no exposed nails, streamlined design integrated into the vehicle environment, and a beautiful trip starts with a pleasing look;
Safe and reliable: It adopts a 20000h ultra-long life fan, high-voltage protection IP68, EMC-3 level, and all products are equipped with grounding wires to ensure product safety and reliability, and have passed the EU E-Mark certification;
Diverse configurations: It has a variety of heating power, fan gears, wiring harness directions, external dimensions and other configurations, which can meet various usage scenarios and save customers worry and effort;
Mode air supply: After simulation analysis of multiple flow fields, a variety of radiator categories are designed to meet personalized needs according to the usage habits of different customers at home and abroad.
Diverse configurations: It has a variety of heating power, fan gears, wiring harness directions, external dimensions and other configurations, which can meet various usage scenarios and save customers worry and effort;
Mode air supply: After simulation analysis of multiple flow fields, a variety of radiator categories are designed to meet personalized needs according to the usage habits of different customers at home and abroad.
Specification
| Model | KLDS-01 | KLDS-02 | KLDS-03 | KLDS-07 |
| Heating（kW） | 1.5 | 2.5 | 3 | 7 |
| Air Flow (m³/h) | 170 | 230 | 325 | 750 |
| Blower Power Consumption (W) | 20 | 36 | 49 | 85 |
| Blower (lifespan) | Brushless axil flow fan 20000h | |||
| Speed Mode | One shift | Two shifts | ||
| Dimension (mm) | 653*165*95 | 666*178*103 | 666*178*103 | 1818*178*103 |
| Weight (kg） | 4.3 | 6.2 | 6.2 | 13.6 |
| Protection Grade | IP54 as a whole part( IP68 for high-voltage components ), EMC-3 | |||
| Application | 6-12M | |||
Display
.jpg)
As a professional electric bus air conditioner manufacturer in China, CLING bus HVAC offers all kinds of bus air conditioner solutions for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles and battery thermal management system, on vehicle refrigeration unit with shortest leadtime possible! 20 years professional experience and reputation guarantees the extraordinary performance!
As a professional electric bus air conditioner manufacturer in China, CLING bus HVAC offers all kinds of bus air conditioner solutions for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles and battery thermal management system, on vehicle refrigeration unit with shortest leadtime possible! 20 years professional experience and reputation guarantees the extraordinary performance!
