Installation Procedures of Cling EZDS Electric Bus Air Conditioners

Installation Procedures of Cling EZDS Electric Bus Air Conditioners
Cling Electric Bus Air Condtioner

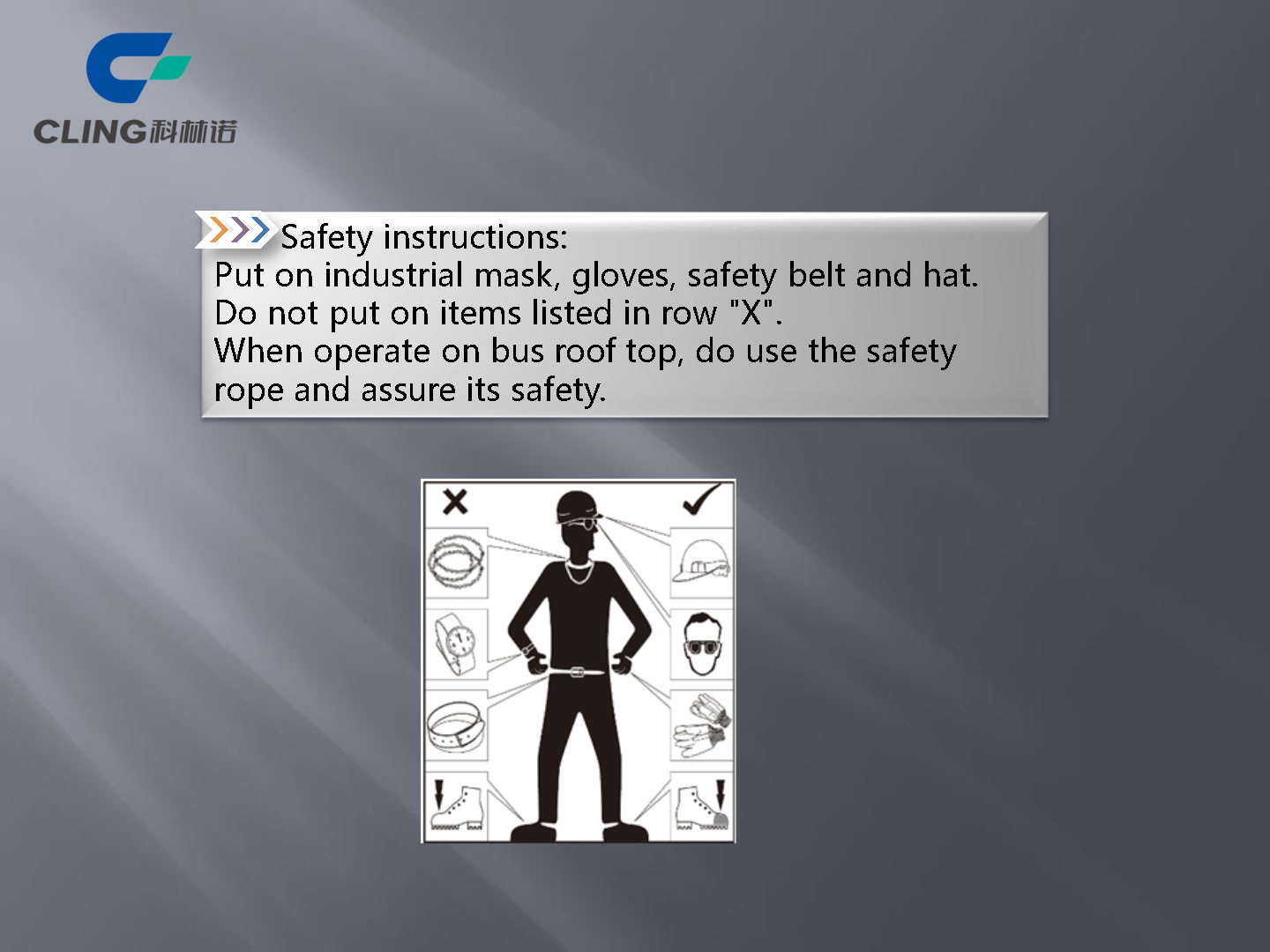

Safety Instructions:
Put on industry mask, gloves, safety belt and hat.
When operate on bus roof top, do use the safety rope and assure its safety.
Cling Electric Bus Air Condtioner
Installation procedures:

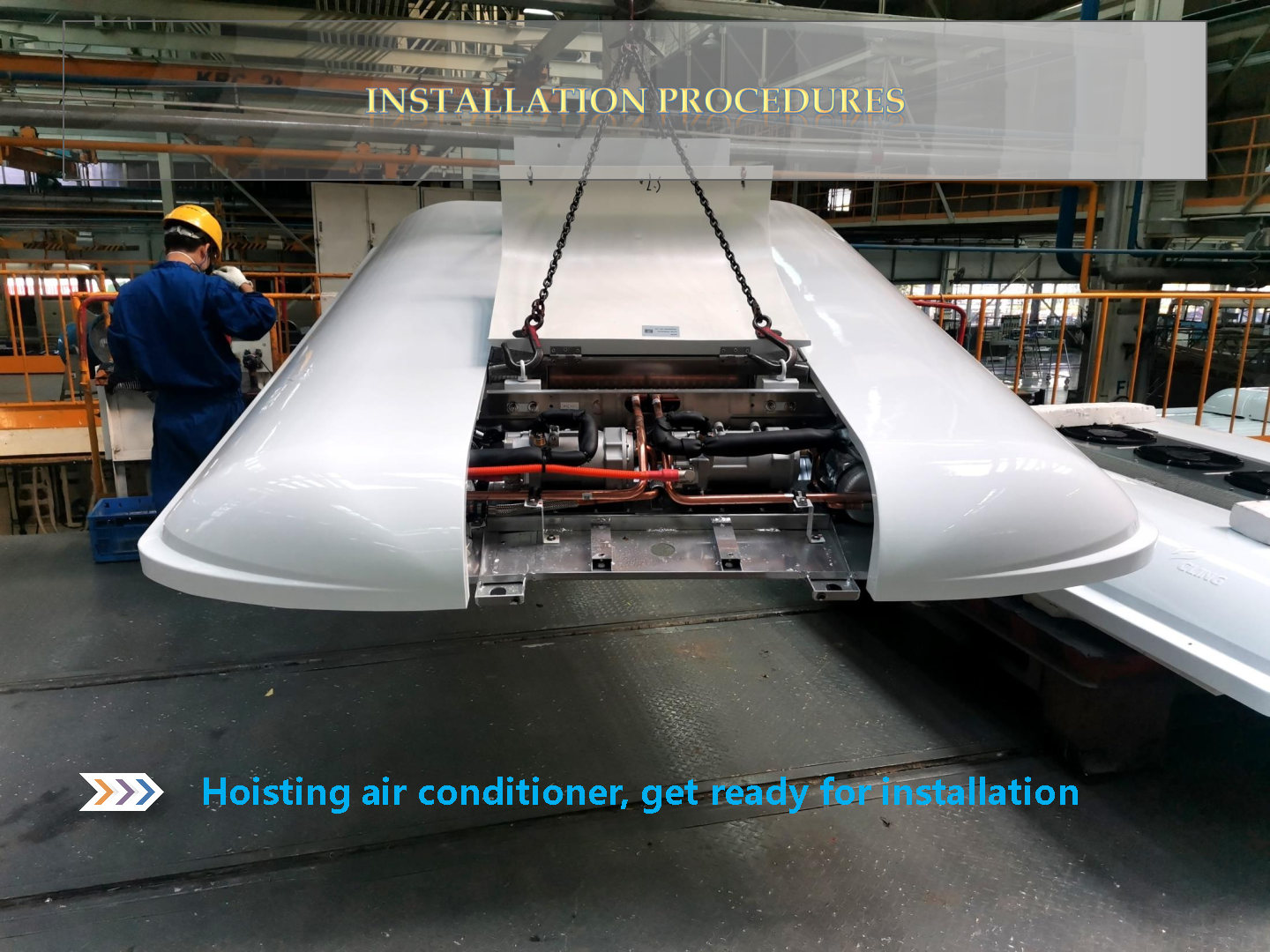

1. Hoisting air conditioner, get ready for installation;
How to install electric bus air conditioner cling

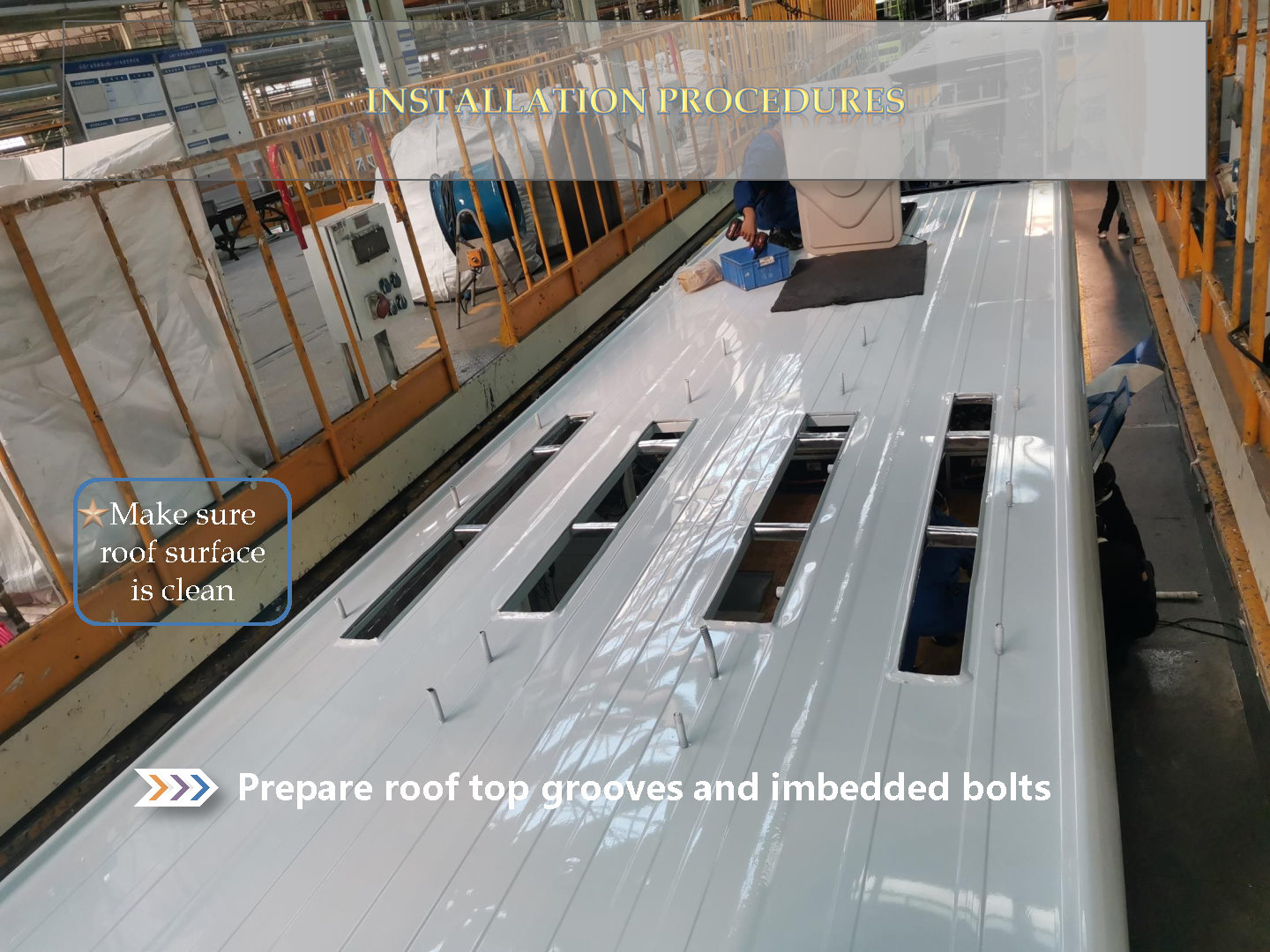

2. Make sure roof surface is clean, prepare roof top grooves and imbedded bolts;
How to install electric bus air conditioner cling

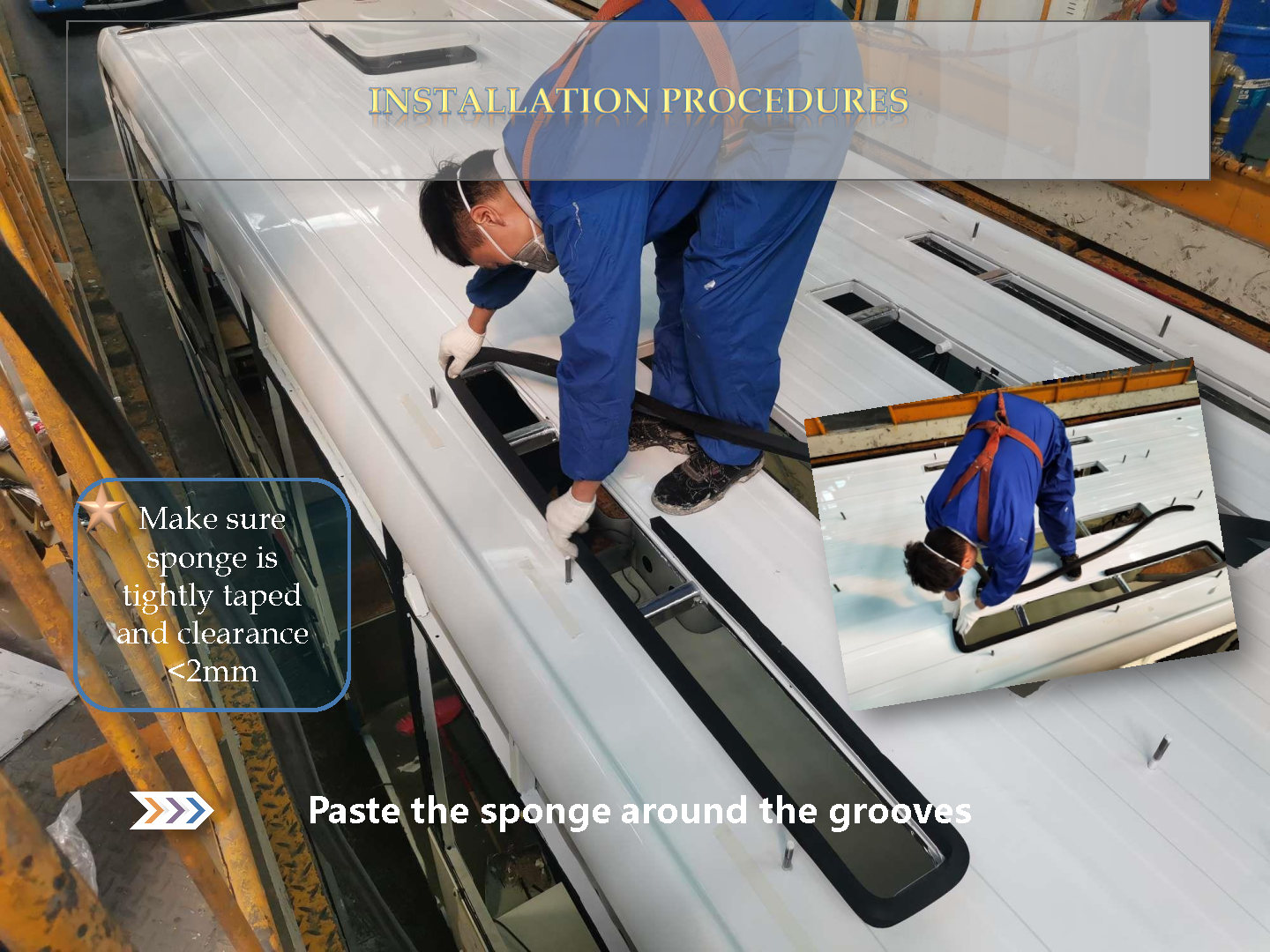

3. Make sure sponge is tightly taped and clearance<2mm, paste the sponge around the grooves;
How to install electric bus air conditioner cling

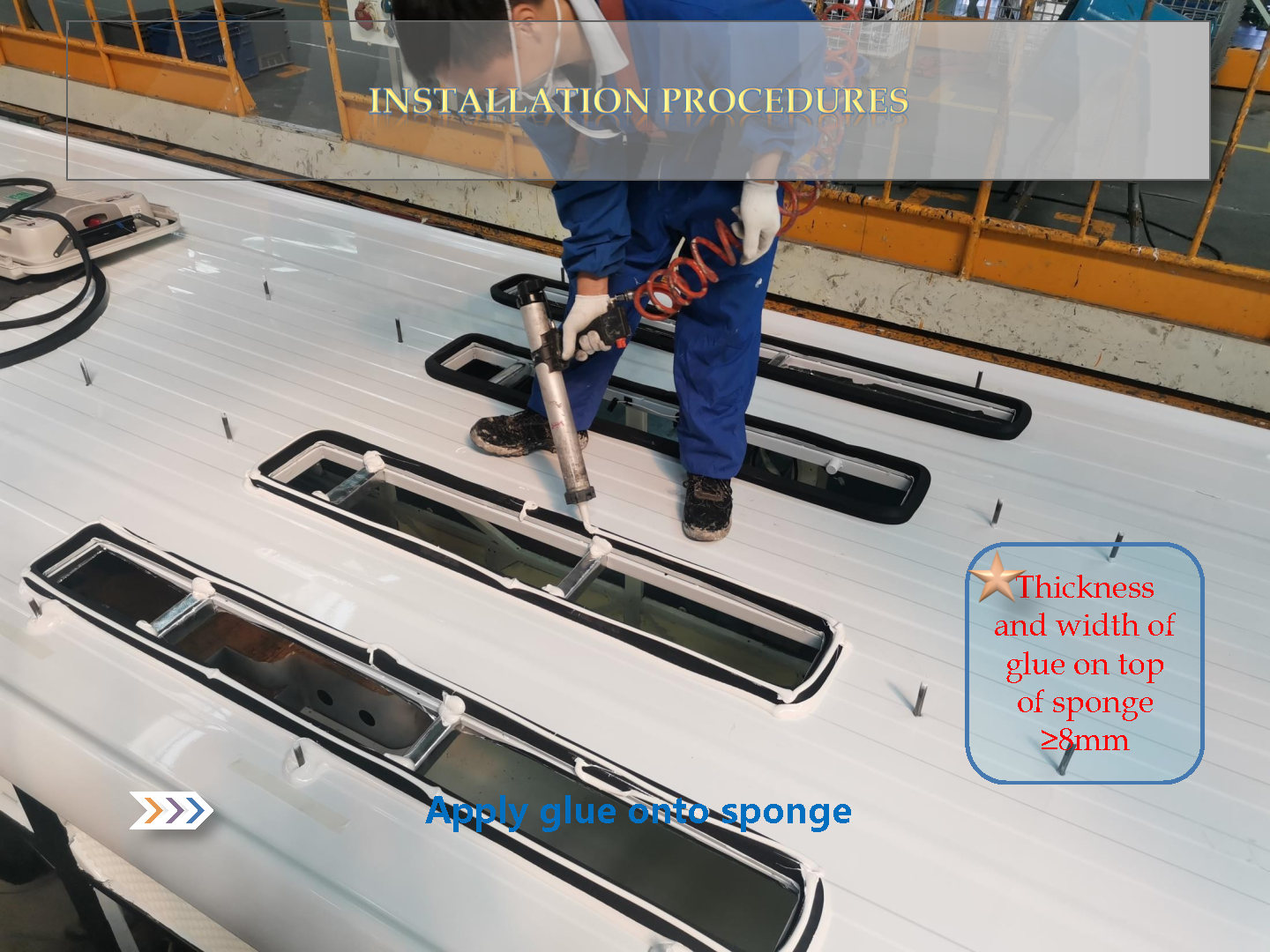

4. Thickness and width of glue on top of sponge ≥8mm, apply glue onto sponge;
How to install electric bus air conditioner cling

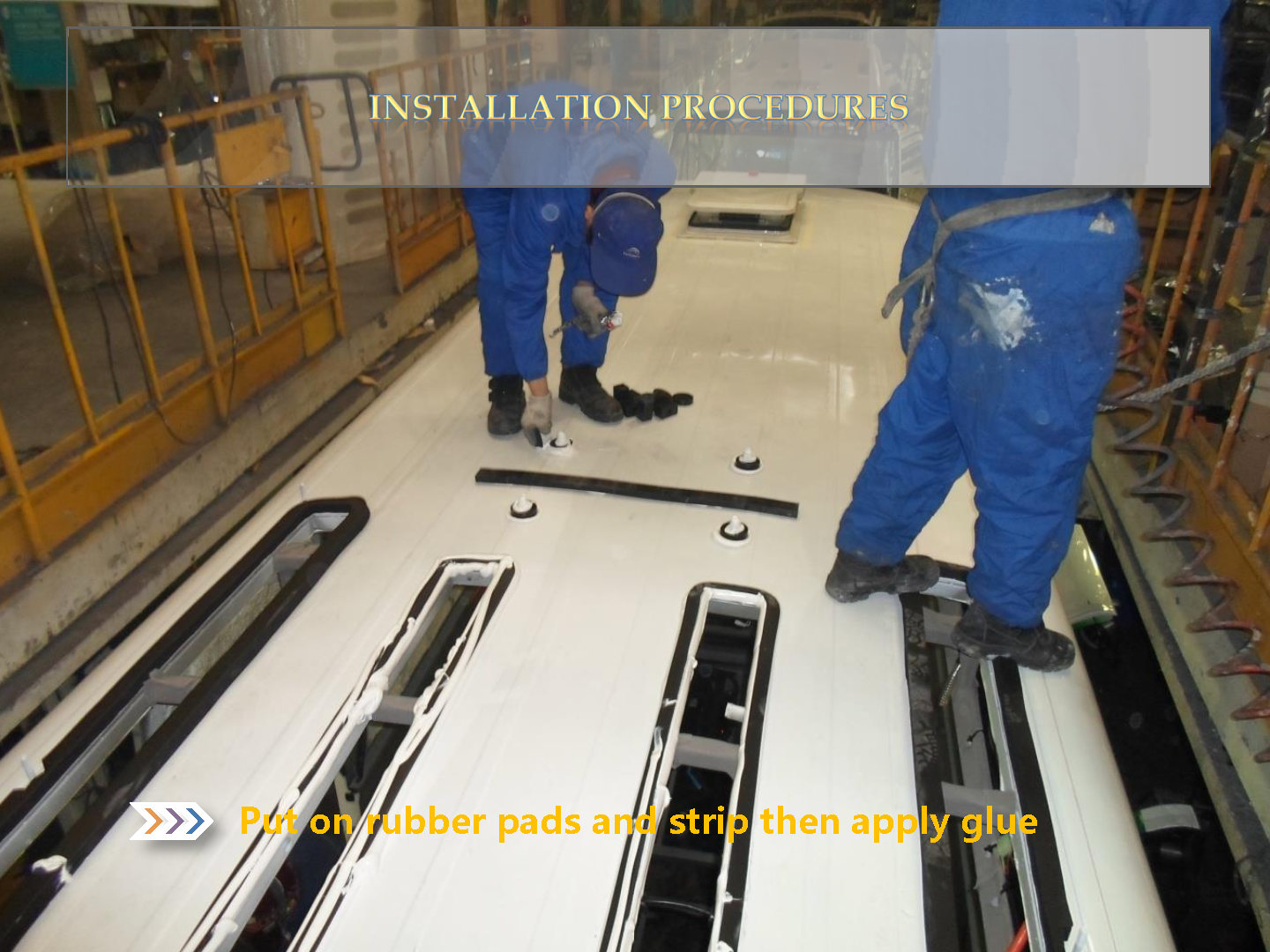

5. Put on rubber pads and strip then apply glue;
How to install electric bus air conditioner cling

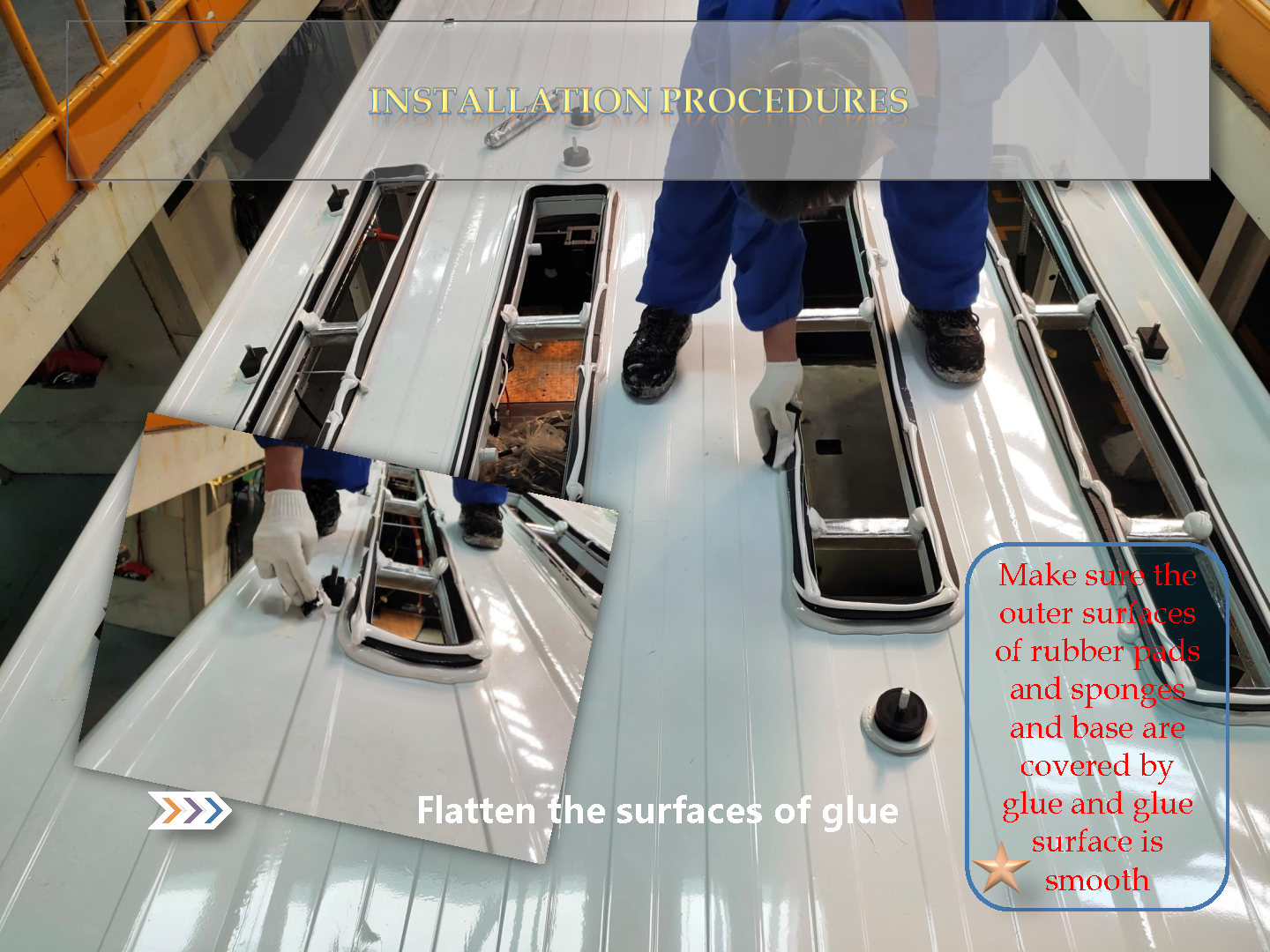

6. Make sure the outer surfaces of rubber pads and sponges and base are covered by glue and glue surface is smooth, flatten the surfaces of glue.
How to install electric bus air conditioner cling

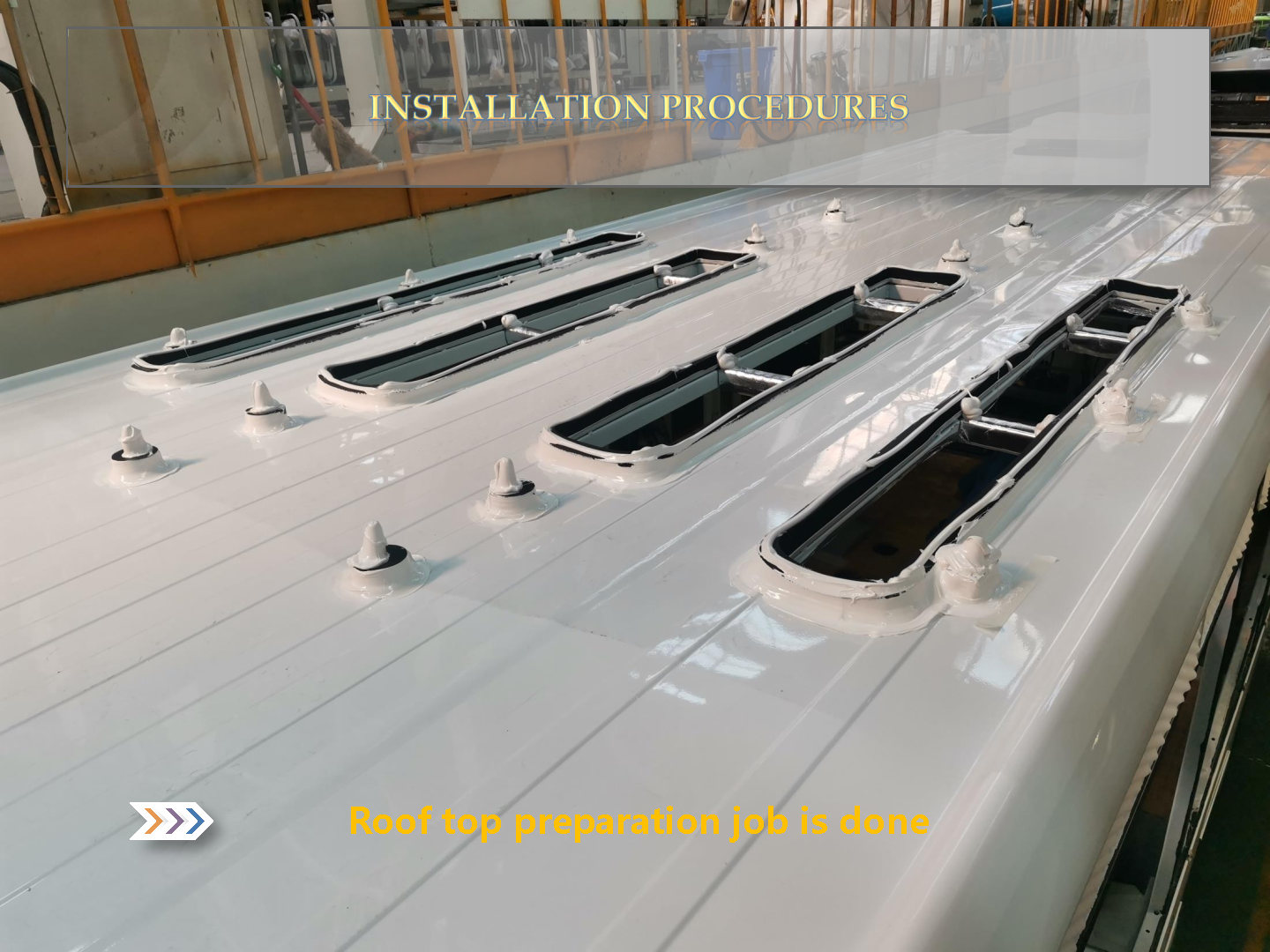

Roof top preparation job is done.
How to install electric bus air conditioner cling

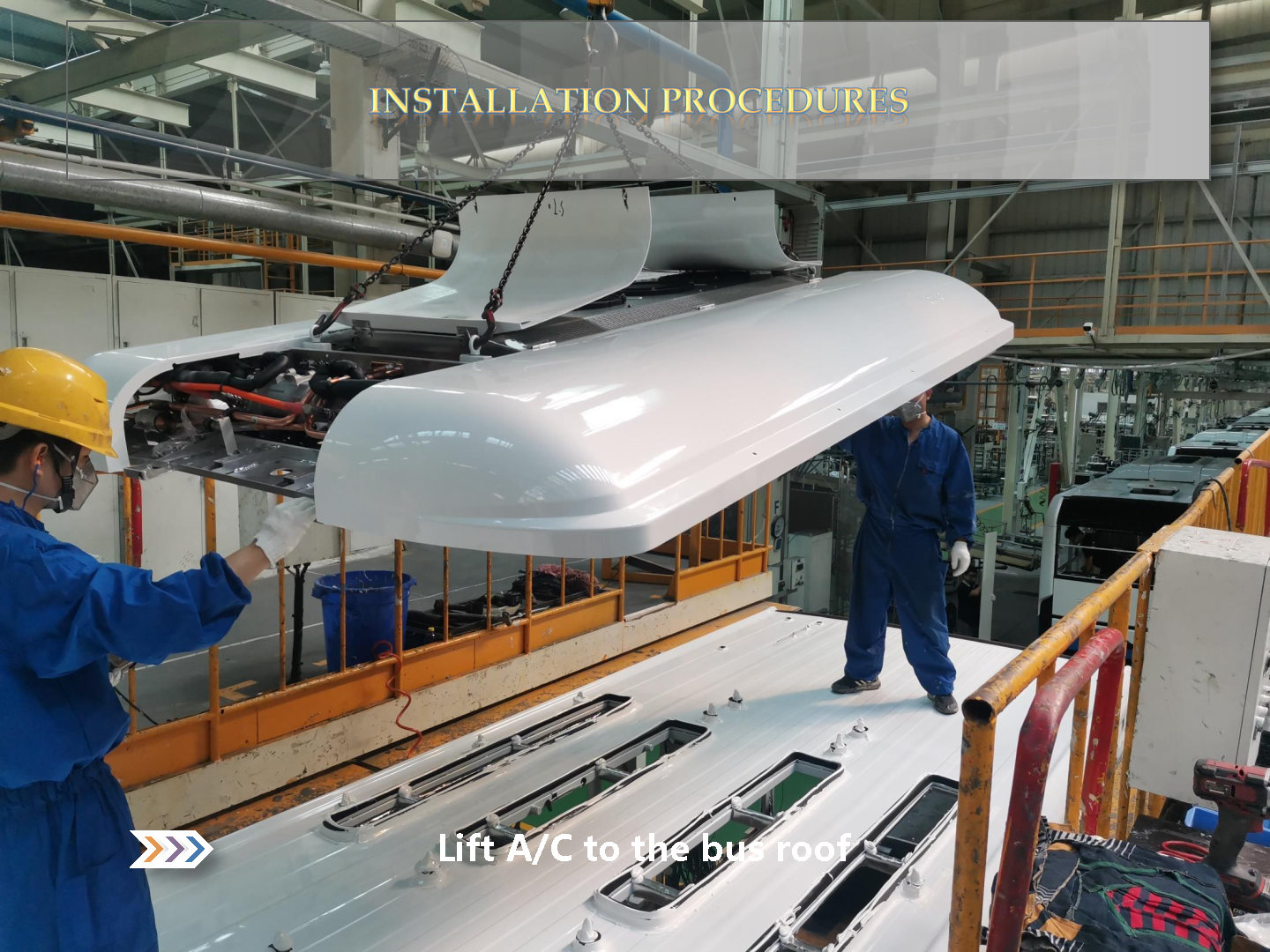

7. Lift bus air conditioner to the bus roof;
How to install electric bus air conditioner cling

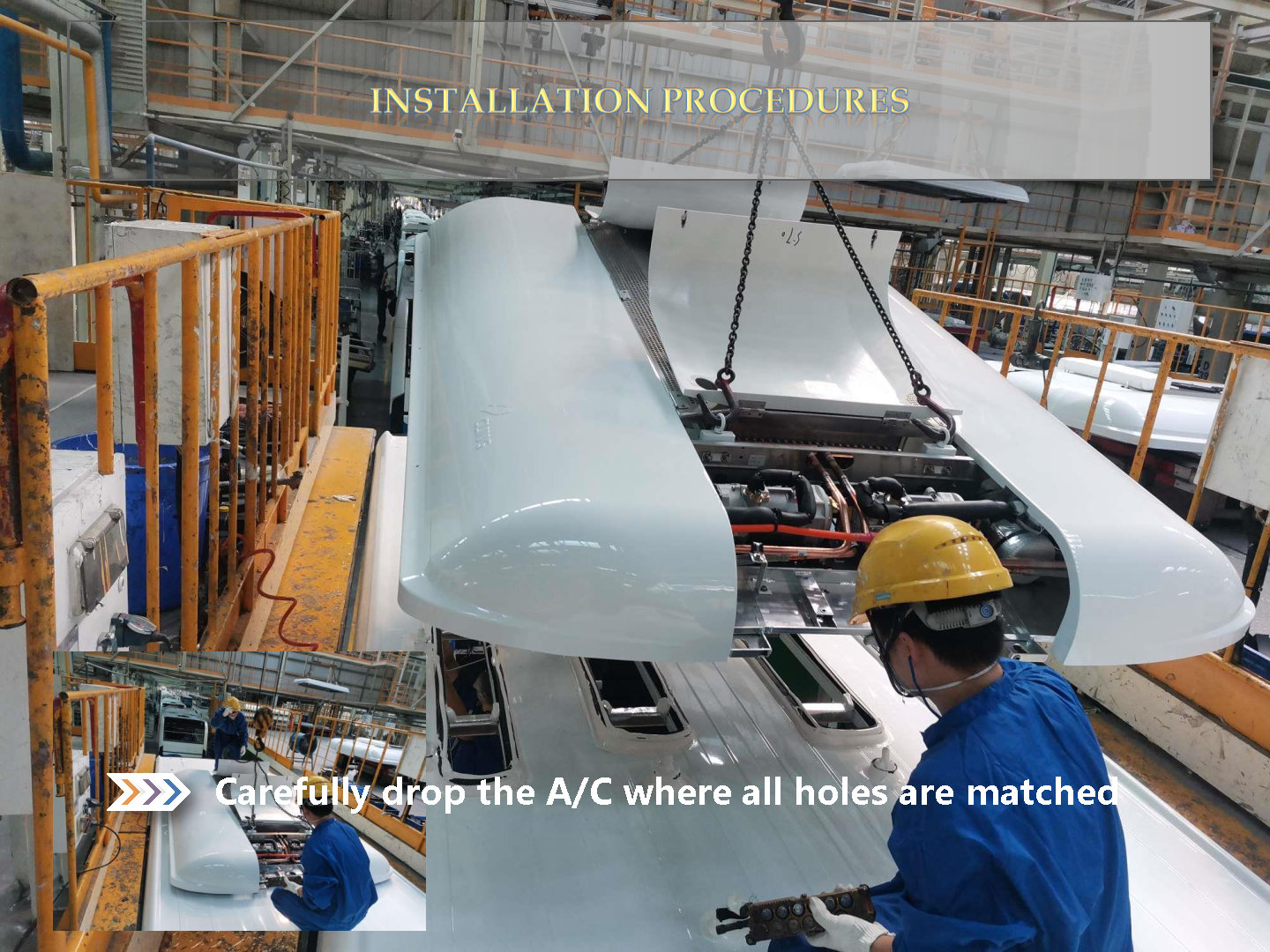

8. Carefully drop the bus air conditioner where all holes are matched;
How to install electric bus air conditioner cling

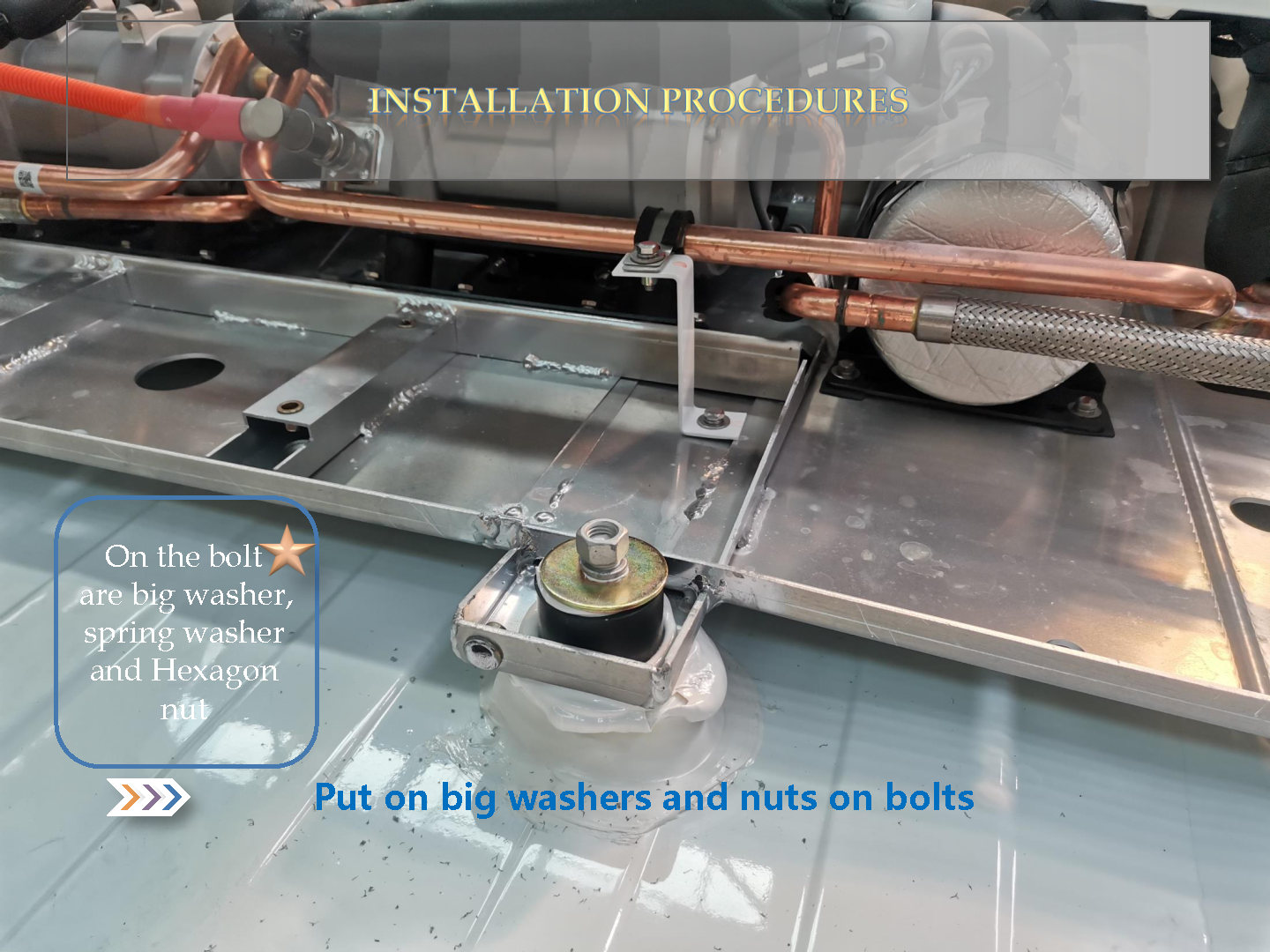

9. On the bolt are big washer, spring washer and hexagon nut, put on big washers and nuts on bolts;
How to install electric bus air conditioner cling

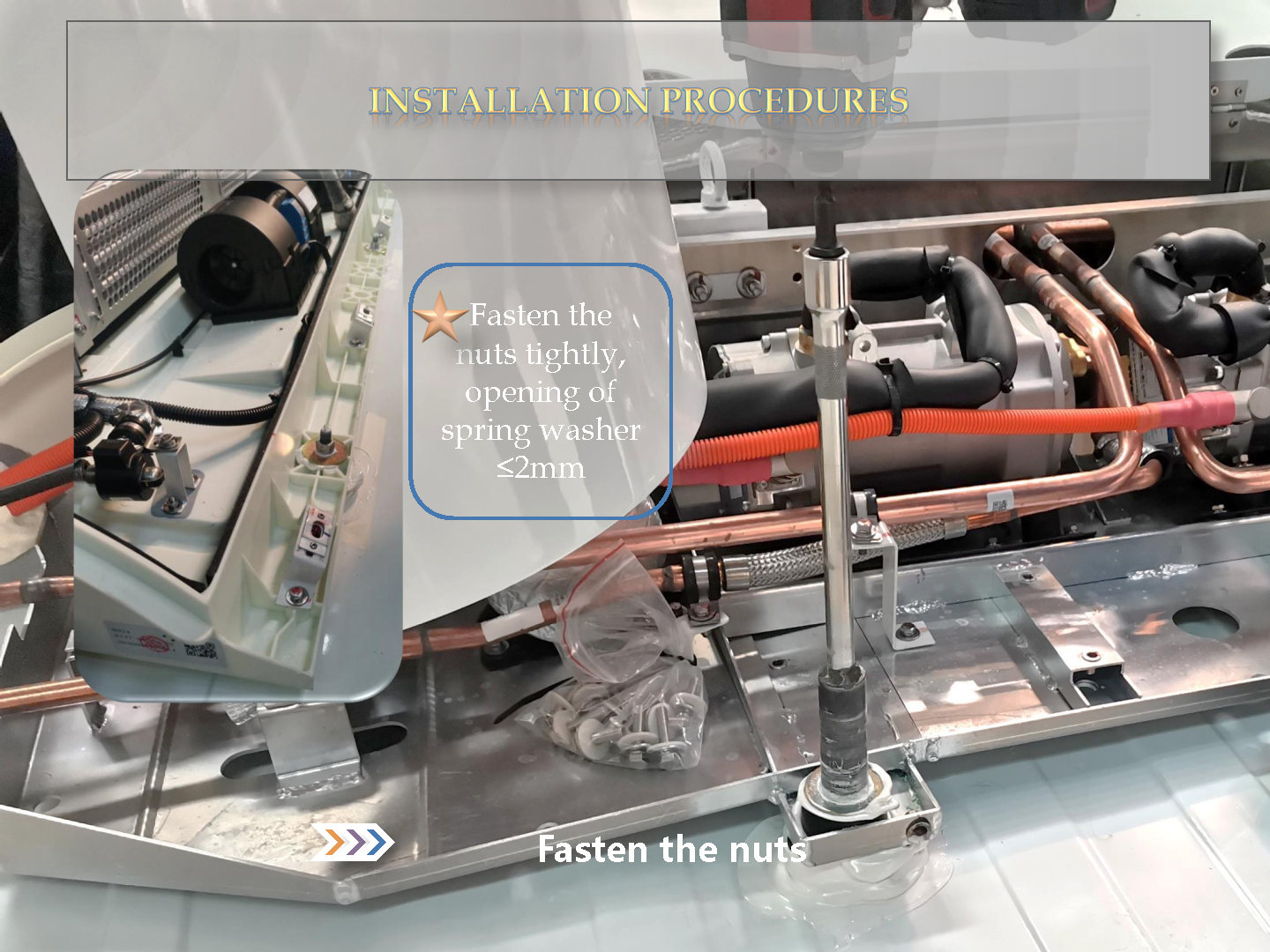

10. Fasten the nuts tightly, opening of spring washer ≤ 2 mm;
How to install electric bus air conditioner cling

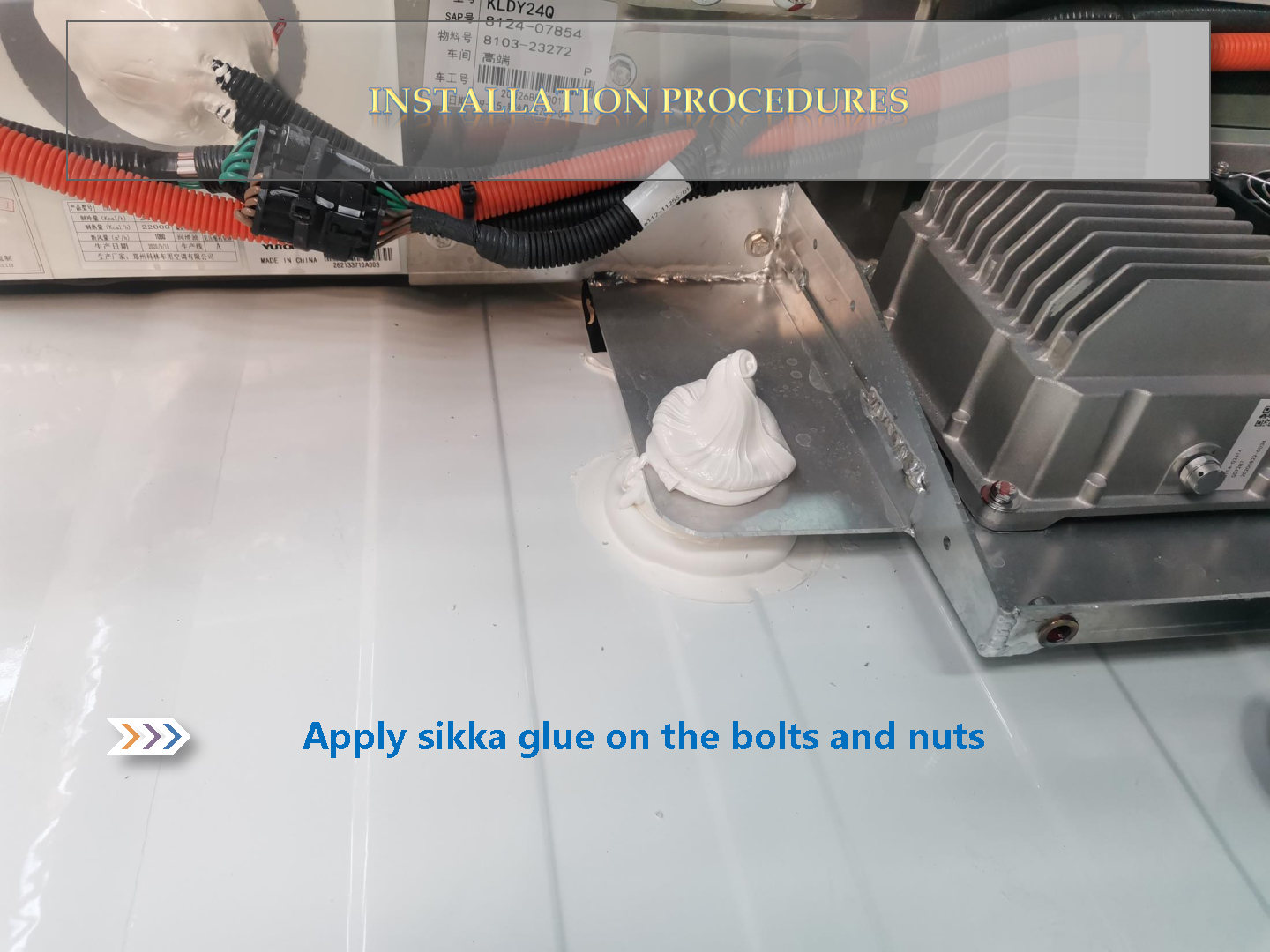

11. Apply sikka glue on the bolts and nuts;
How to install electric bus air conditioner cling

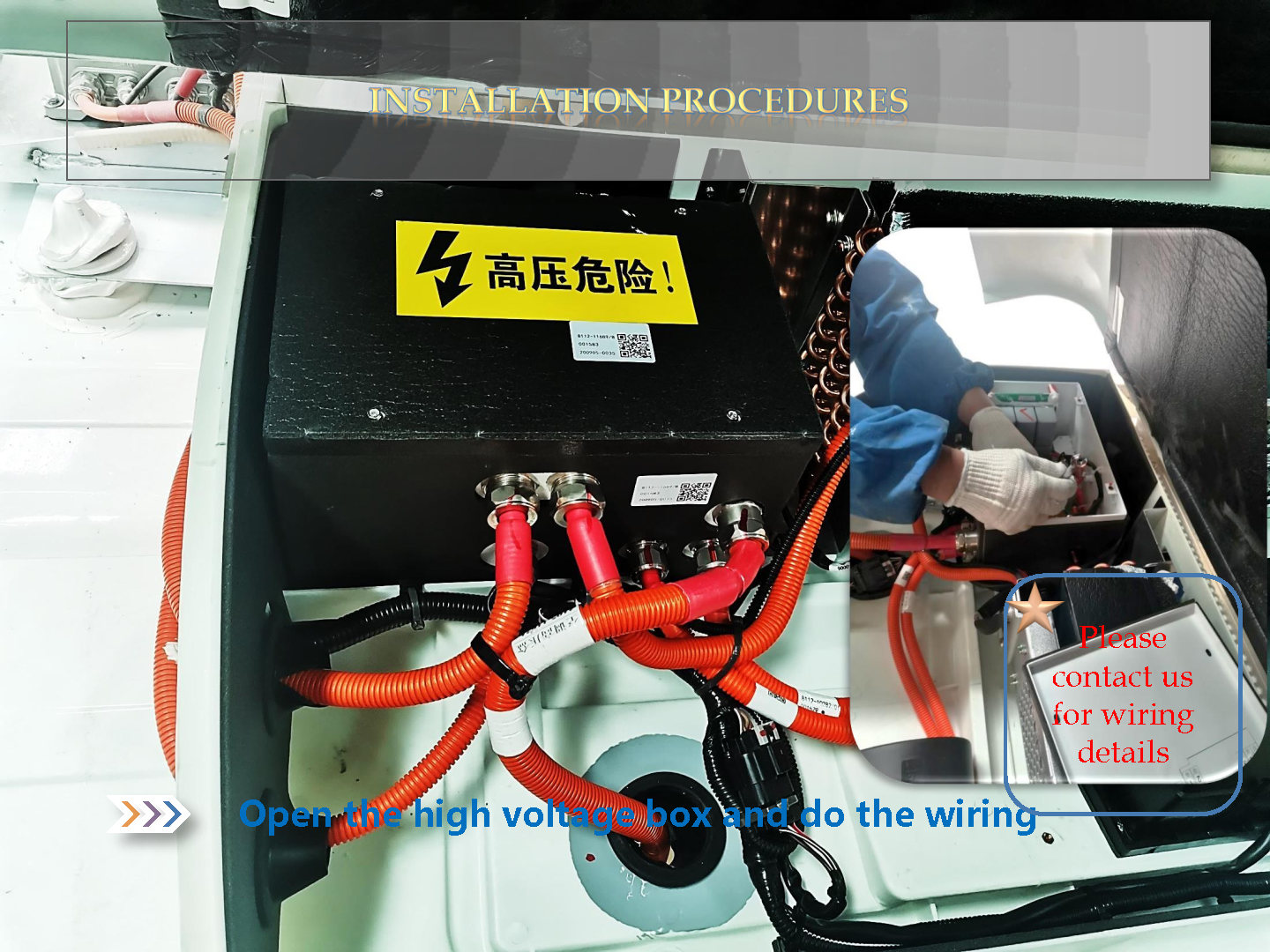

12. Open the high voltage box and do the wiring(need to contact us for wiring details);
How to install electric bus air conditioner cling

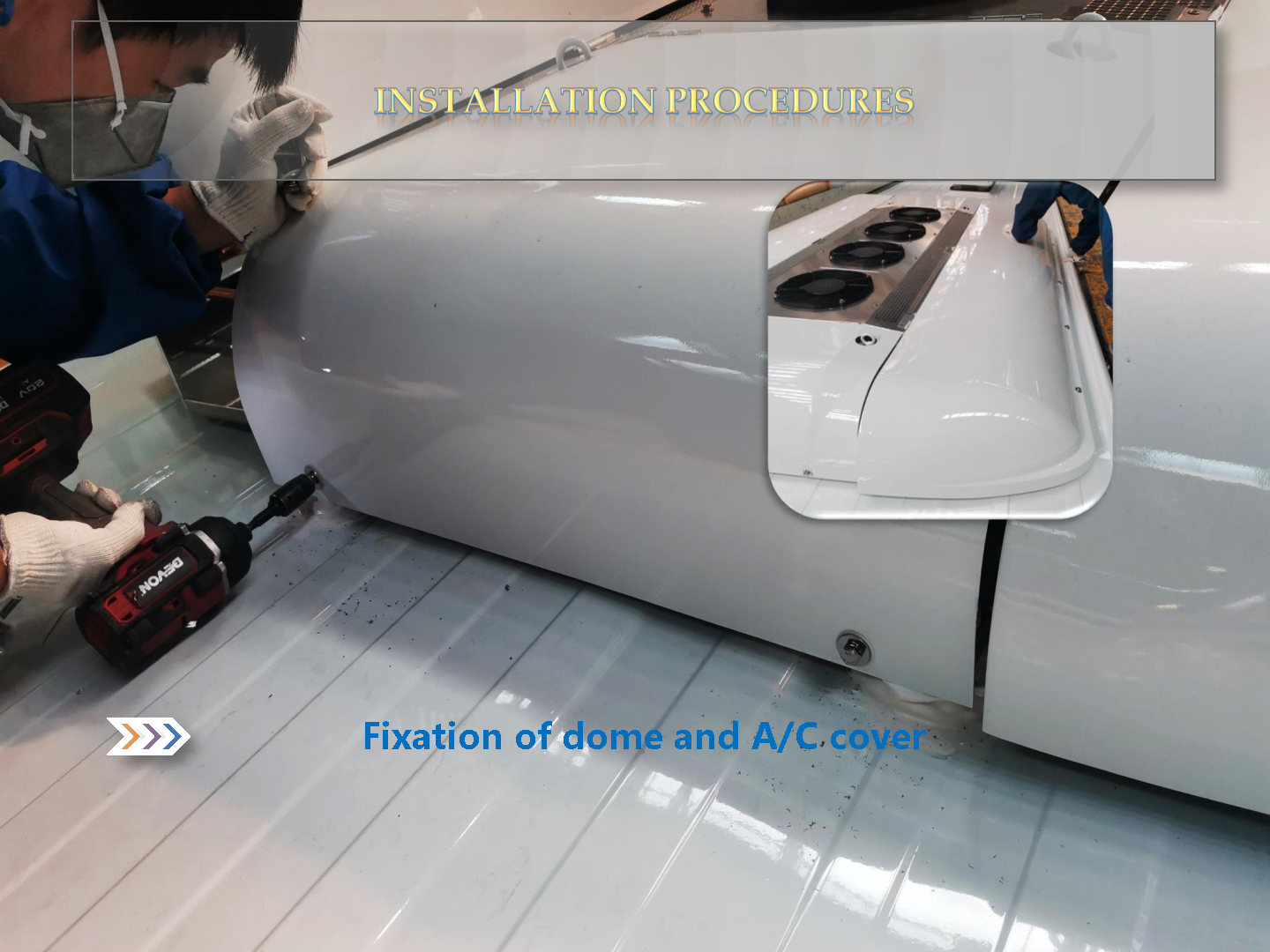

13. Fixation of dome and air conditioner cover.
How to install electric bus air conditioner cling
As a professional bus air conditioner manufacturer in China, Cling offers a wide range of air conditioning products for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles etc at best cost-performance.
If you have any questions please don't hesitate to contact us.
