Introduction to Cling On Vehicle Refrigeration Unit

Cling On-vehicle Refrigeration Unit Features

Adjustable operating mode;

The operating mode can be adjusted to shut-down or standby according to the door opening and closing signal.

Real-time monitoring of low pressure and temperature;

It can monitor the low pressure and temperature in real time, with accurate control and high reliability.

Rapid refrigerating;

With large redundancy design of condenser and evaporator, faster refrigeration is achieved.

Variable-frequency energy saving technology;

Electronic expansion valve and variable frequency compressor are adopted, making the unit more power-saving in thermal insulation.

Memory function;

Parameters are automatically saved in real time, and will be loaded automatically at each startup. Operation can be restored by power-on after shutdown under special circumstances.

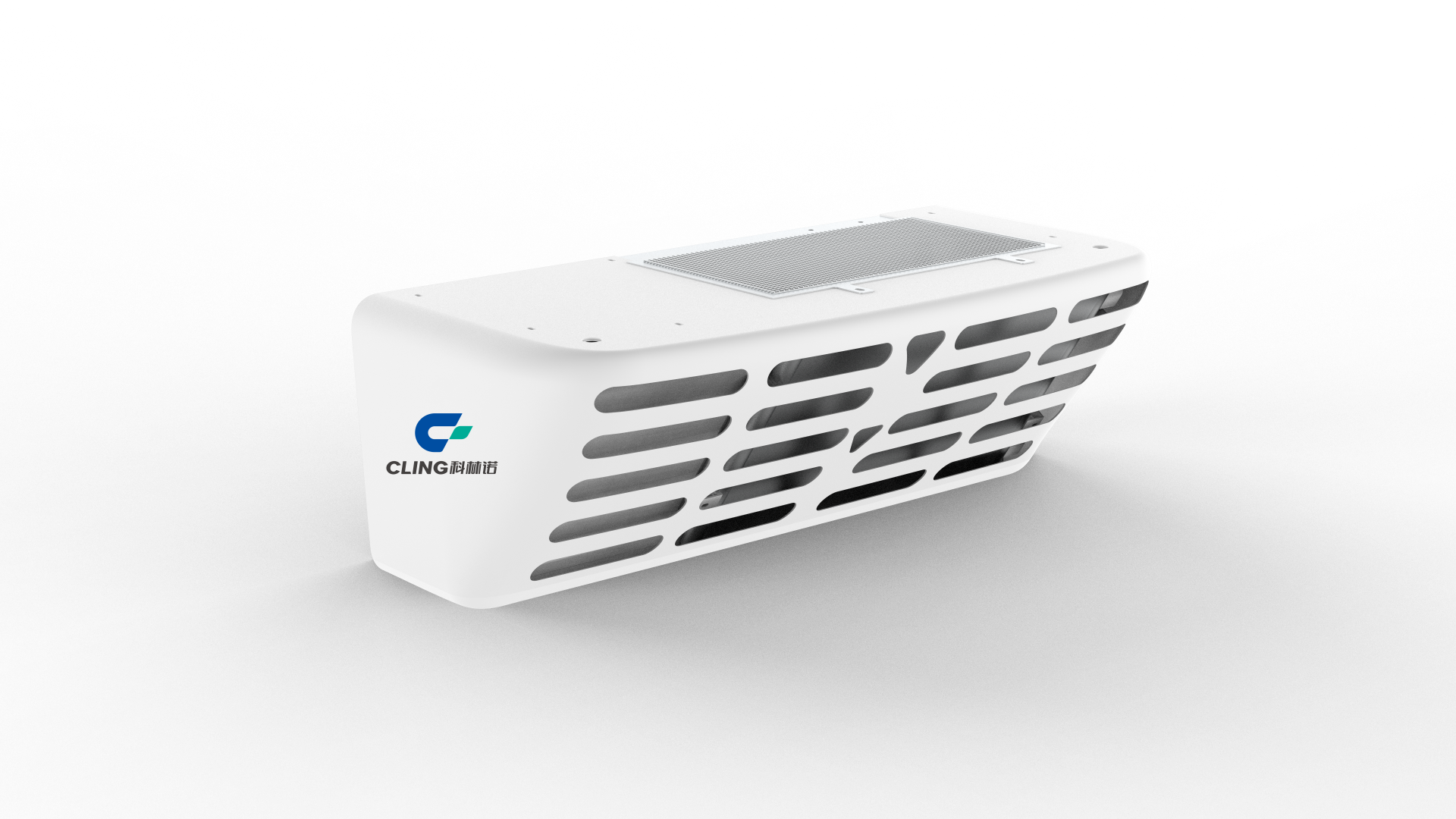

molead cling on vehicle refrigeration unit

Cling On-vehicle Refrigeration Unit Specification

Model		HW-400E	HW-450E	HW-550E	HW-600E	HW-400	HW-450	HW-500
Applicable Power Supply		200VDC-750VDC				/
Operating Temperature		-25℃~30℃
Applicable Box Volume (m³)		8-12	16-22	18-28	28-35	8-12	16-22	18-28
Refrigerating Capacity W (A.T.P)	0℃	4250	4730	5173	6400	4150	4550	5073
	-20℃	2250	2500	2700	2835	2050	2500	2680
Compressor	Exhaust Volume	34cc		40cc	42cc	27cc	31cc	35cc
Condenser	Type	Micro-channel Heat Exchanger
	Quantity of Fans	2Pcs			3Pcs	2Pcs
	Voltage	12VDC/24VDC		24VDC	12VDC/24VDC	12VDC/24VDC		24VDC
Evaporator	Type	Fin-and-tube Heat Exchanger
	Quantity of Fans	2Pcs			3Pcs	2Pcs
	Air Volume (m³/h)	1200		1600	2000	1200		1600
	Voltage	12VDC/24VDC		24VDC	12VDC/24VDC	12VDC/24VDC		24VDC
Refrigerant		R404A
Filling Amount (kg)		1.2	1.5	1.8	2.2	1.3	1.6	2
Back-up Power	Optional	220VAC/380VAC				/
Heating	Optional	1000W		1500W	2500W	/
Installation Type		Integrated		Divided		Integrated		Divided
Weight (kg)		80	85	92	105	70	80	85

As a professional bus air conditioner manufacturer in China, Cling offers a wide range of HVAC system products for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles etc at best cost-performance.
