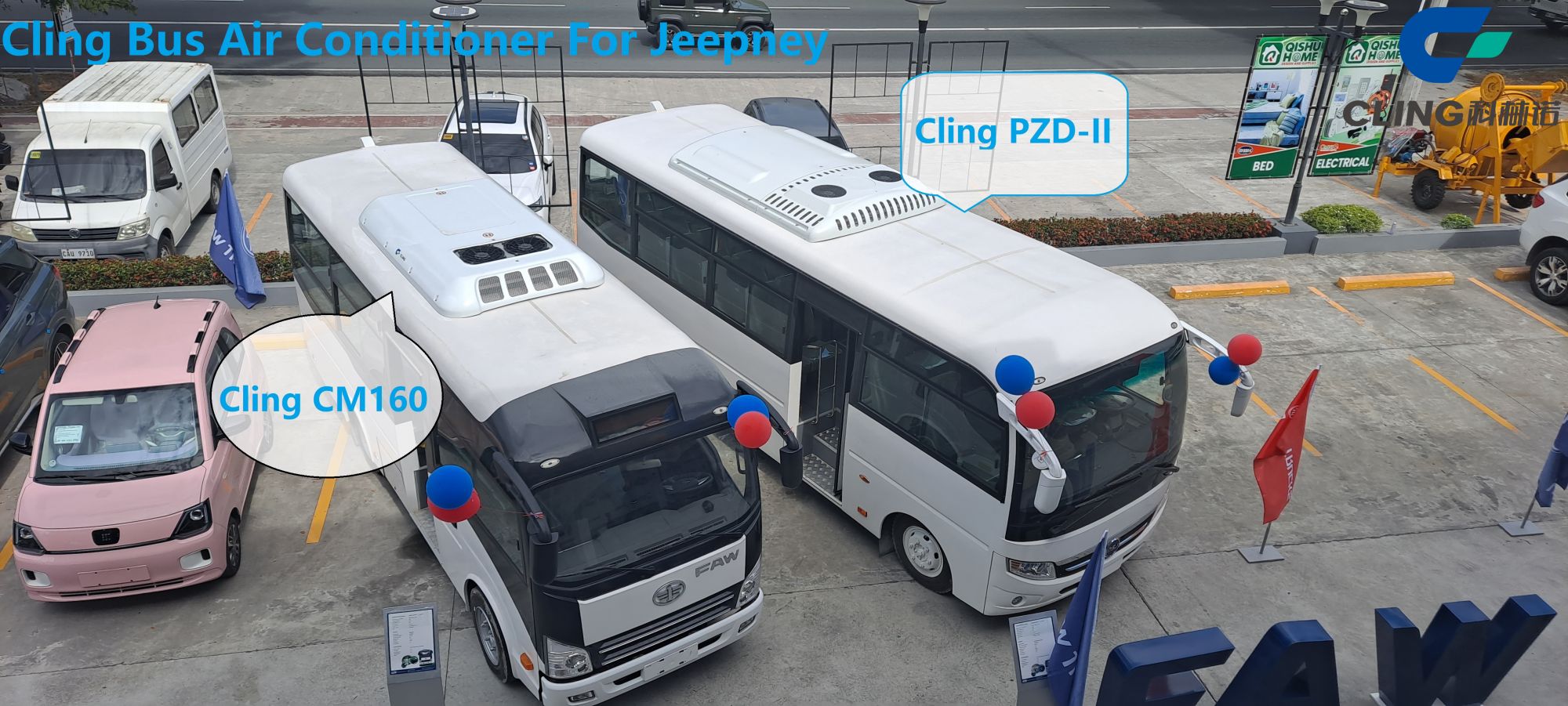

CM160 Roof Mounted Single Cooling Narrow Body Minibus Air Conditioner

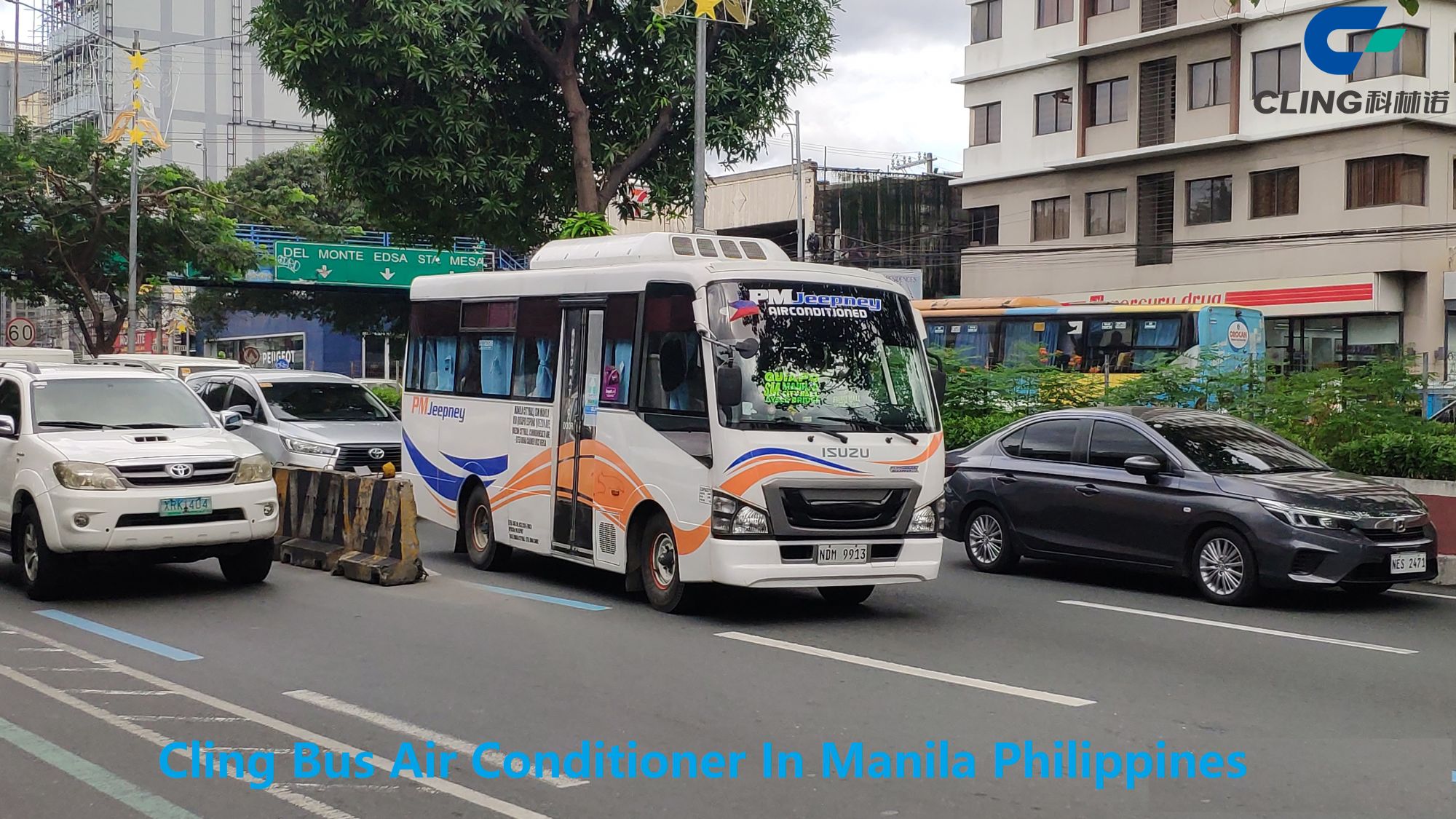

The CM 160 roof-mounted single cooling narrow body air conditioner is specially designed for 6-meter narrow-body minibuses such as JEEPNEY & PUV. It is a new generation of products that are ingeniously created in terms of precision, beauty, lightness and simplicity, bringing customers a brand new user experience!

Beautiful Appearance

1. The width-to-length ratio of 1360:2200, 0.618, the golden ratio, and the super streamlined body perfectly demonstrate the designer's understanding of "beauty" and bring customers the best aesthetic feeling;

2. It adopts an integral TRM one-piece molded cover, a 45° concave front face and a high-strength aluminum alloy filter. At the same time, the evaporation and condensation parts adopt a concave and convex surface design. The appearance of the CM 160 bus air conditioner is fashionable and comfortable, setting off a revolution in the shape of Cling bus air conditioners.

Light As A Feather

1. Compact body: Size of the CM160 bus air conditioner is 2200*1360*210, which is perfectly suitable for 6-meter narrow-body minibuses such as JEEPNEY & PUV;

2. All-aluminum structure: It adopts a new welding structure of aluminum profiles + aluminum alloy, and repeatedly simulates and analyzes each structure to reduce the material and welding points on the basis of ensuring strength and function to reduce the weight of the product;

3. RTM process application: The bus air conditioner cover adopts high-strength and lightweight RTM process, supplemented by a comfortable appearance design concept. Not only the quality of the outer surface is greatly improved, but also the thickness and material density of the cover body are greatly reduced. The thickness is only 2.8mm, and the weight reduction is obvious;

4. It is a milestone that reduces the weight of the 6-meter bus air conditioner to 90kg, and the package size is 30% smaller than the previous generation PZD-I product.
molead cling bus air conditioner

Cold As Ice

1. The cooling capacity under standard conditions reaches 13kw, far exceeding the existing products on the same platform;

2. The CM-160 wind field/flow field modeling analysis improves the inlet and outlet wind and core layout, optimizes the air conditioning wind field/flow field, makes the relationship between wind and refrigerant core more harmonious, reduces process heat loss, and improves efficiency.

Easy To Maintain

1. The condensing fan adopts a quick-release structure, which can be repaired and maintained without removing the cover;

2. The pipe and wire adopt a glue-free structure for passing the coil, which is easy to disassemble while ensuring sealing performance and beauty; after mechanical analysis and verification, the fixing points of each component are simplified, and installation and disassembly are convenient.

63dB Quiet Sleep

Select a low-noise fan to achieve 63dB quiet sleep and create the best customer experience.

Product Parameters

Model	CM160
Cooling Capacity（kcal/h)	12000
Max Power Consumption (A)	50-55
Evaporator Airflow（m³/h)	3200(4pcs)
Condenser Airflow（m³/h)	4000(2pcs)
Compressor Displacement(CC)	313
Refrigerant	R134a
Weight (kg)	90
Size (mm) LxWxH	22001360210
Application	Jeepney/PUV

As a professional bus air conditioner manufacturer in China, Cling offers a wide range of air conditioning products for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles etc at best cost-performance.

If you have any questions please don't hesitate to contact us.

E-mail: marketing@clingac.com

WhatsApp: +86 18736032501

Phone: +86 18736032501
