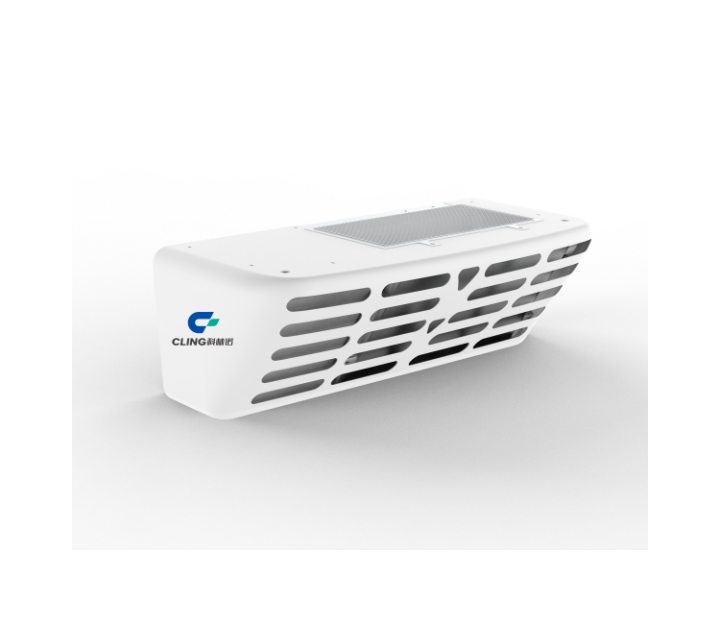

Cling Electric On-vehicle Refrigeration Unit
CLING Electric On-vehicle Refrigeration Unit, widely used in Asia, America, Middle East and Africa due to its powerful performance.
-
Truck
-
Van
-

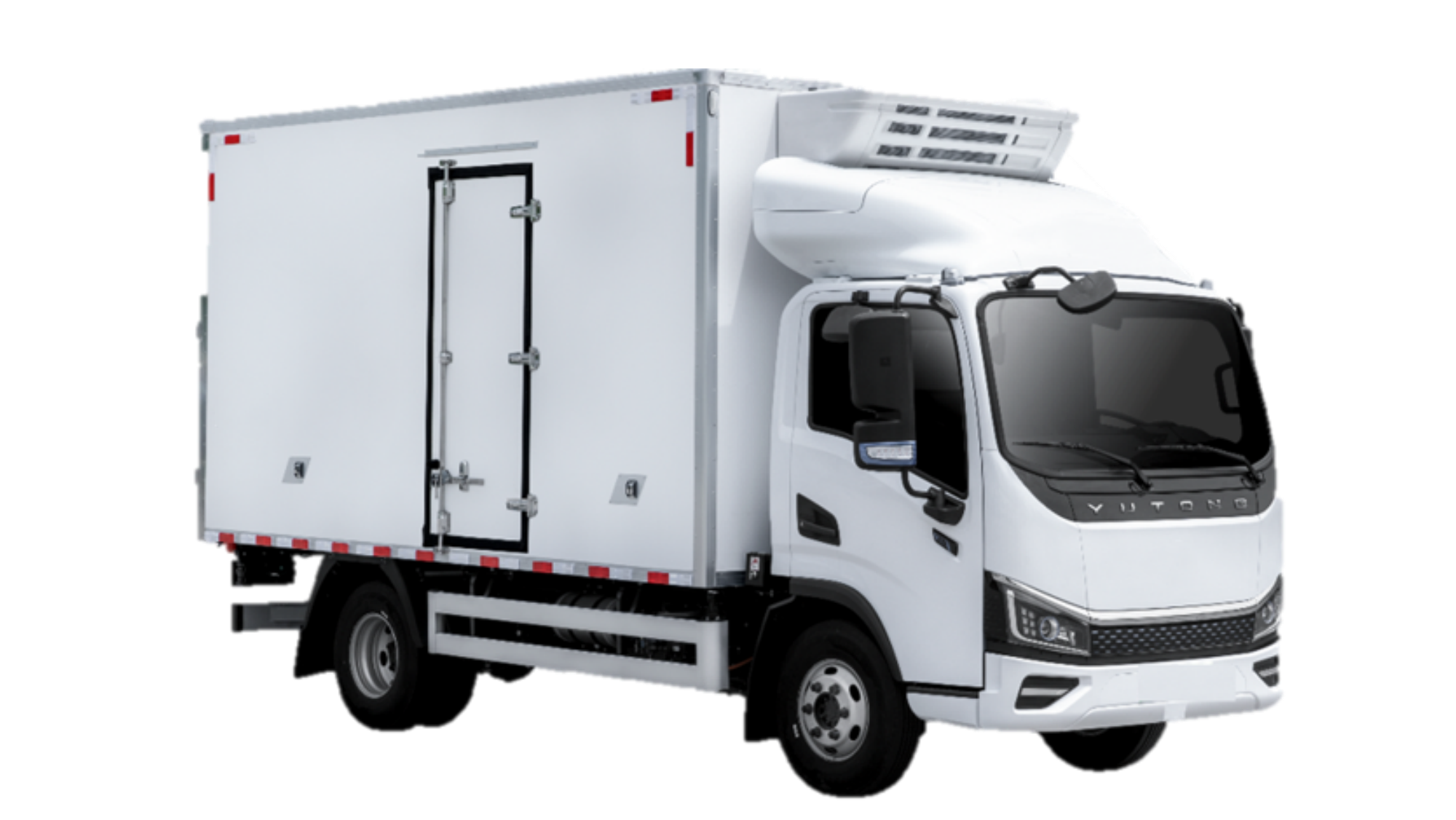

Refrigerator Truck
Technical Data Sheet
| Model | HW-400E | HW-450E | HW-550E | HW-600E | HW-400 | HW-450 | HW-500 | |
| Applicable Power Supply | 200VDC-750VDC | / | ||||||
| Operating Temperature | -25℃~30℃ | |||||||
| Applicable Box Volume (m³) | 8-12 | 16-22 | 18-28 | 28-35 | 8-12 | 16-22 | 18-28 | |
| Refrigerating Capacity W (A.T.P) | 0℃ | 4250 | 4730 | 5173 | 6400 | 4150 | 4550 | 5073 |
| -20℃ | 2250 | 2500 | 2700 | 2835 | 2050 | 2500 | 2680 | |
| Compressor | Exhaust Volume | 34cc | 40cc | 42cc | 27cc | 31cc | 35cc | |
| Condenser | Type | Micro-channel Heat Exchanger | ||||||
| Quantity of Fans | 2Pcs | 3Pcs | 2Pcs | |||||
| Voltage | 12VDC/24VDC | 24VDC | 12VDC/24VDC | 12VDC/24VDC | 24VDC | |||
| Evaporator | Type | Fin-and-tube Heat Exchanger | ||||||
| Quantity of Fans | 2Pcs | 3Pcs | 2Pcs | |||||
| Air Volume (m³/h) | 1200 | 1600 | 2000 | 1200 | 1600 | |||
| Voltage | 12VDC/24VDC | 24VDC | 12VDC/24VDC | 12VDC/24VDC | 24VDC | |||
| Refrigerant | R404A | |||||||
| Filling Amount (kg) | 1.2 | 1.5 | 1.8 | 2.2 | 1.3 | 1.6 | 2.0 | |
| Back-up Power | Optional | 220VAC/380VAC | / | |||||
| Heating | Optional | 1000W | 1500W | 2500W | / | |||
| Installation Type | Integrated | Divided | Integrated | Divided | ||||
| Weight (kg) | 80 | 85 | 92 | 105 | 70 | 80 | 85 | |
Features
Adjustable operating mode
The operating mode can be adjusted to shut-down or standby according to the door opening and closing signal.
Real-time monitoring of low pressure and temperature
It can monitor the low pressure and temperature in real time, with accurate control and high reliability.
Rapid refrigerating
With large redundancy design of condenser and evaporator, faster refrigeration is achieved.
Variable-frequency energy saving technology
Electronic expansion valve and variable frequency compressor are adopted, making the unit more power-saving in thermal insulation.
Memory function
Parameters are automatically saved in real time, and will be loaded automatically at each startup. Operation can be restored by power-on after shutdown under special circumstances.
The operating mode can be adjusted to shut-down or standby according to the door opening and closing signal.
Real-time monitoring of low pressure and temperature
It can monitor the low pressure and temperature in real time, with accurate control and high reliability.
Rapid refrigerating
With large redundancy design of condenser and evaporator, faster refrigeration is achieved.
Variable-frequency energy saving technology
Electronic expansion valve and variable frequency compressor are adopted, making the unit more power-saving in thermal insulation.
Memory function
Parameters are automatically saved in real time, and will be loaded automatically at each startup. Operation can be restored by power-on after shutdown under special circumstances.
